g2 – Strong Constrained Triangle Geometry

These are mostly g2 features shown here. The vector graphics n this markdown preview is interactive. You can select and move the two orange circular handles below.

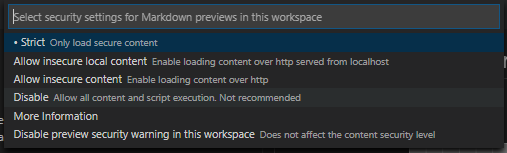

In case, you see incomplete graphics inside of VSCode this security warning, you want to click on it. Select Disable and thus allow our embedded script to run.

We use an empty <g-2> element here and later fill the graphics content via script.

<g-2 id='g' width="401" height="301" x0="100" y0="100" darkmode
         grid cartesian interactive></g-2>

<!-- some code lines later -->

<script src="./js/triangle.js"></script>

The script triangle.js is located relative to the markdown content document and contains the code:

function init(e) {
    const g2elm = e.currentTarget;
    const A = {x:0,y:0,r:5,fs:'#ccc'},
          B = {x:200,y:0,r:5,fs:'orange'},
          C = {x:50,y:Math.sqrt(25*75),r:5,fs:'#ccc'};
          H = {x:50,y:0,r:5,fs:'orange'};

    g2elm.g.ply({pts:[H,A,C,H,B,C],fs:'lightgreen',lw:2,ls:'navy',lj:'round'})
           .arc({x:()=>B.x/2,y:0,r:()=>B.x/2,w:0,dw:Math.PI,lw:2,ls:'navy'})
           .cir(A)
           .cir(B)
           .cir(C)
           .cir(H)

    function constraining() {
        B.x = Math.max(B.x,0);
        C.x = H.x = Math.max(Math.min(H.x,B.x),0);
        C.y = Math.sqrt(C.x*(B.x-C.x));
        B.y = H.y = 0;
    }

    g2elm.addEventListener("tick", constraining, false);
}

document.addEventListener("DOMContentLoaded", () => {
    if (document.readyState === 'loading')
        document.getElementById('g').addEventListener("init", init, false);
    else
        init({currentTarget: document.getElementById('g')})
});
